SKE PowerDirect Mini UPS manufacturer
Custom
DL-181
Mini UPS

DL-181

  • 17W
  • 2500mAh / 2600mAh
  • USB / DC

DL 181 is a multi-function mini DC UPS engineered to provide reliable backup power for small DC communication equipment and network peripherals. Equipped with a high-capacity lithium battery system consisting of 2500mAh or 2600mAh capacity, it ensures extended runtimes during power grid failures

Group buy

Minimum order 100 pcs, in steps of 100. The batch goes into production once all buyers together reach 1000 pcs; each buyer picks their own plug.

Need other outputs, another battery or your own brand?Customize this model →
Unit price $6.87 / pc
100 pcs $6.87 → 1000 pcs $6.00
Minimum 100 pcs, in steps of 100, up to 1000.
Plug Tap a plug to choose it. Use + / − to mix several.
US · Type A/B Venezuela, Colombia, Ecuador, Mexico, USA 100
EU · Type C/F Europe, Russia, CIS, Middle East 0
UK · Type G UK, Nigeria, UAE, Malaysia 0
AU · Type I Australia, Argentina, China 0
India · Type D India, Nepal, Sri Lanka 0
Other type Type J, L, M, N or another standard 0
All units assigned
Unit price$6.87
Total$687.00
Deposit to join the batch (30%)$206.10
Balance when production is done (70%)$480.90
Join the batch on WhatsApp Order by email

FOB prices in USD, freight not included. Subject to confirmation.

Features

  • Multi function power supply
  • High capacity lithium battery
  • Integrated circuit controller protection
  • Protection from over-charging, discharging, and short circuit
  • Suitable for small DC communication equipment, network peripherals such as Modem routers, CCTV etc.

How long will it run?

Pick the devices you want to keep online during a power cut.

Wi-Fi router ~10 W 0
Fiber ONT / modem ~6 W 0
IP camera ~5 W 0
PoE camera ~7 W 0
Starlink Mini ~30 W 0
Total load0 W
Estimated backup time—

Add a device to see the backup time.

Estimate based on battery capacity and 85% conversion efficiency. Actual time depends on the devices.

Specifications

Model
DL-181
Brand
SKE
Type
Mini UPS
Machine type
Standard (built-in battery)
Output power
17W
Input voltage
100-240Vac/50-60Hz
Output ports
2
Output types
USB / DC
USB output
5Vdc / 2.1A Max.
DC output
9Vdc/12Vdc/24Vdc / 1.2A Max./1A Max./0.5A Max.
Battery qty & capacity
2500mAh / 2600mAh
Dimensions (mm)
101.5x55x65mm
Net weight (kg)
0.25

Product details

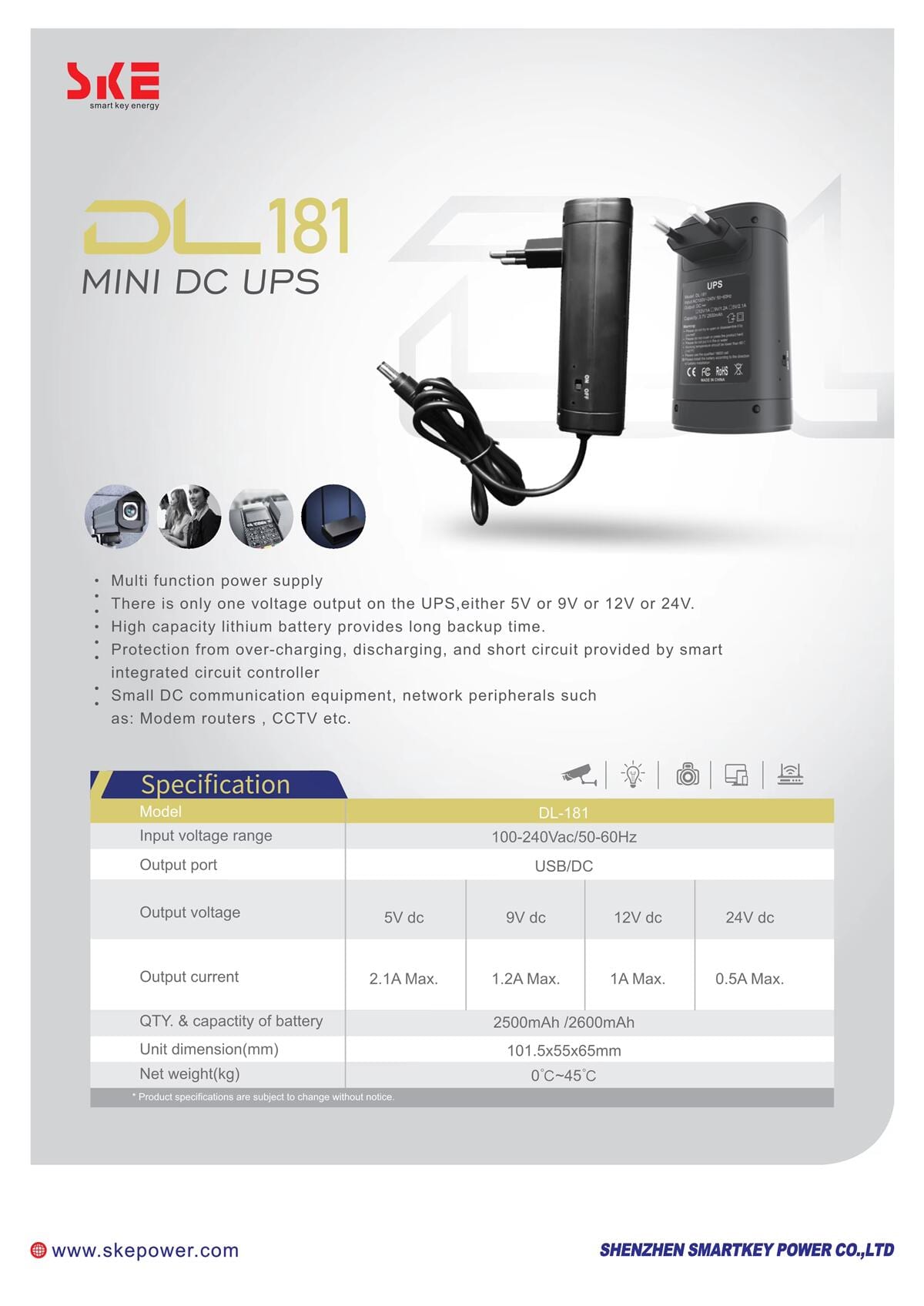

DL-181 1DL-181 2
